Cement Silos

The cement silo is an integral piece of equipment for any concrete production operation. The silo allows the product to be purchased and stored in bulk, keeping costs to a minimum. Zimmerman Industries will help you evaluate your particular requirements to ensure that the cement silo best suited for you is selected. Variables for silo selection include, loading site design, height restrictions, available power source, and the need to move the silo to an alternate location.

Silo’s used in the concrete industry are often sized by the term “barrel”. This designation refers to the amount of material that the silo can hold when full. It is defined as 4 cubic feet of a given material. To convert this value to WEIGHT or MASS of material that can be held, the weight (mass) per cubic foot must be known. Since cement is usually loaded pneumatically, the amount of air that is integrated in the cement must be accounted for to avoid overfilling of the silo.

The following data can be used to determine the silo capacity needed.

  • 1 Barrel of Cement = 300 lbs of blown in, or “fluffed” cement.
  • 200 Barrel Silo – Loaded Capacity of 60,000 lbs / 30 tons
  • 300 Barrel Silo – Loaded Capacity of 90,000 lbs / 45 tons

The round portable silo comes with axles and wheels attached so that they may be relocated. In many cases, this portability allows for variances to restrictions that apply to stationary units. The silo must be emptied prior to lowering and moving, as the axles are only rated for the empty unit. Typically, can be transported with a 1 ton truck.

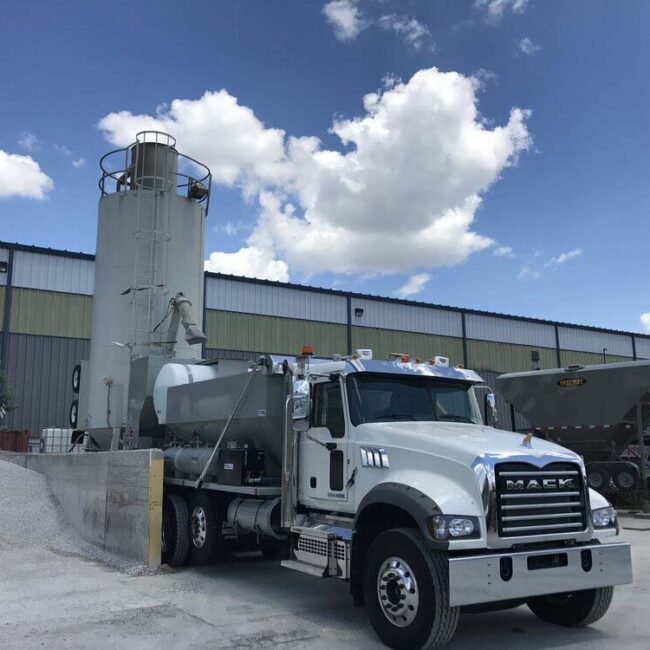

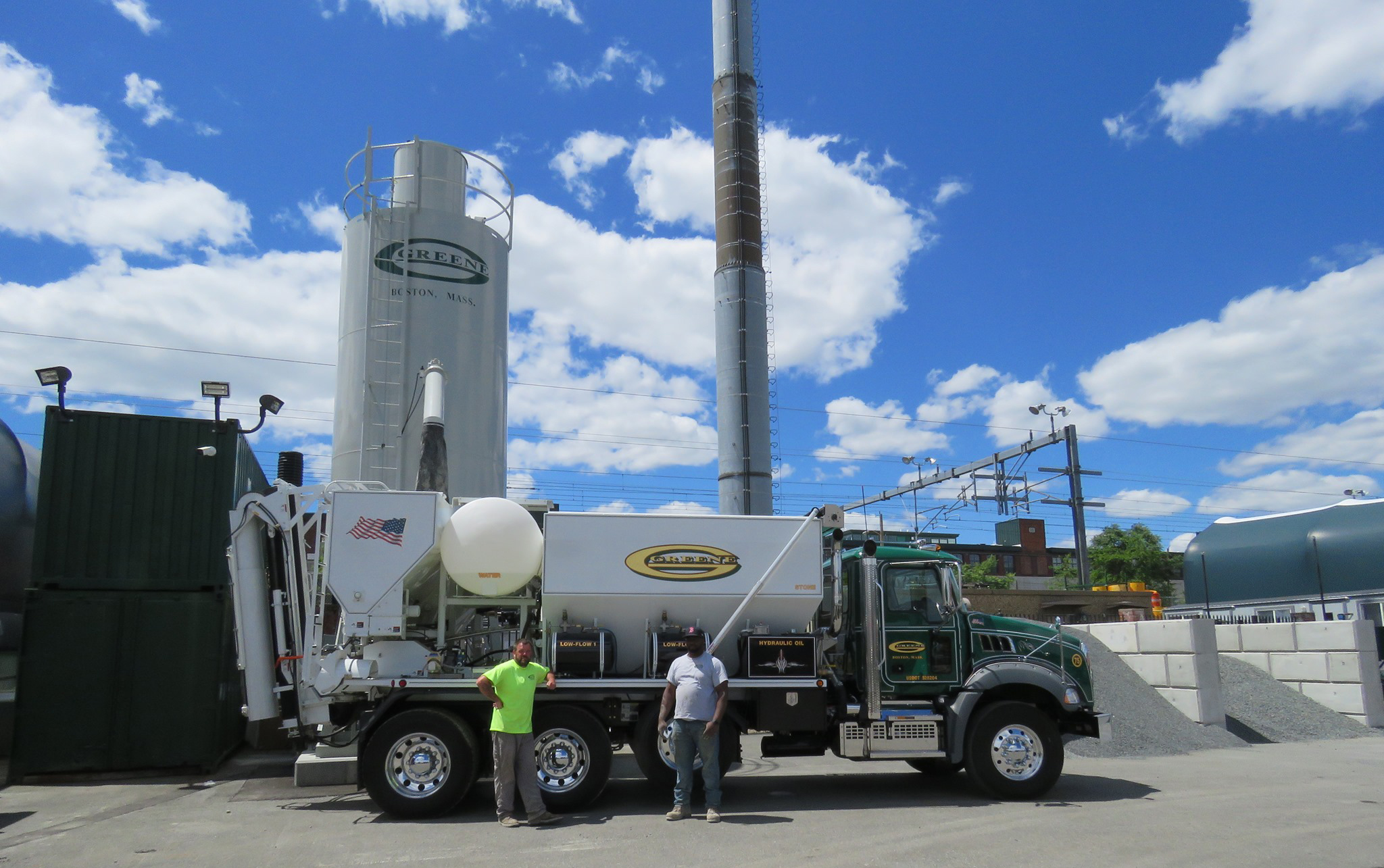

  • Zim-Mixer Volumetric Concrete Mixer with portable cement silo


270 Barrel Portable Silo

  • 8'6" Dia. x 31' high
  • Positive feed drive
  • 7" Dia. screw x 17' long
  • 5 HP motor and gear box drive
  • Heavy duty dual axle trailer and tires
  • Electric brakes and light package
  • 150 sq. ft. bag area dust house with air vibrator
  • Caged ladder and railing package
  • External air pads with manifold
  • Trailer jack
  • Weight: 8,500#

350 Barrel Portable Silo

  • 8'6" Dia. x 37' high
  • Positive Feed Drive
  • 9" Dia. screw x 17' long
  • 10 HP motor and gear box drive
  • Heavy duty dual axle trailer and tires
  • Electric brakes and light package
  • 150 sq. ft. bag area dust house with air vibrator
  • Caged ladder and railing package
  • External air pads with manifold
  • Trailer jack
  • Weight: 10,000#

Options

  • Available with 225 sq. ft. dust house
  • Bin level indicators
  • 16 HP Gas Motor
  • Single Phase Electric Motor
  • Other options available

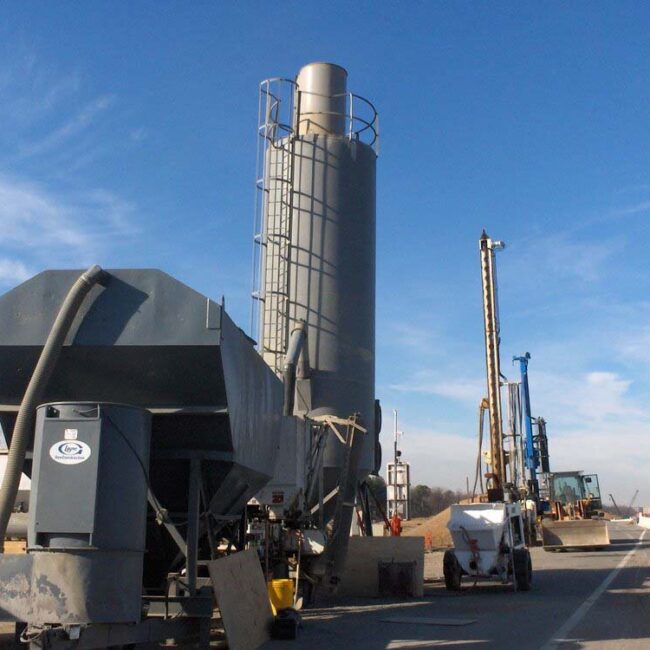

When height is limited, either for code specifications or physical location restrictions, this silo is the solution. The silo comes with axles and wheels attached so that it may be moved. The axles and wheels are only rated for an empty unit, so the silo must be alternately supported prior to loading and unloaded prior to moving. As with the upright portable silo, this silo can normally be moved with a 1 ton truck.

  • front of a 200 barrel low profile cement silo


200 Barrel Low-Profile Cement Silo

  • 200 barrel capacity/800 cubic ft.
  • Legal 8'-6" wide x legal 13'-6" high
  • 26' overall length
  • 7" carry up screw standard (9" screw available)
  • 5 HP gear box drive
  • Jamgate assembly
  • Two 6,000# axles with wheels and tires
  • Electric brakes and lights
  • Belle 150 sq. ft. dust house with air vibrators
  • External air pads with manifold
  • Weight: 8,000#

300 Barrel Low-Profile Cement Silo

  • 300 barrel capacity/1200 cubic ft.
  • Legal 8'-6" wide x legal 13'-6" high
  • 38' overall length
  • 7" cross screw, 9" carry up screw
  • 5 HP and 10 HP gear box drives
  • Jamgate on each hopper
  • 10,000# axle with dual wheels and electric brakes
  • External air pads with manifold
  • Fifth wheel trailer and lights
  • Weight: 15,000#

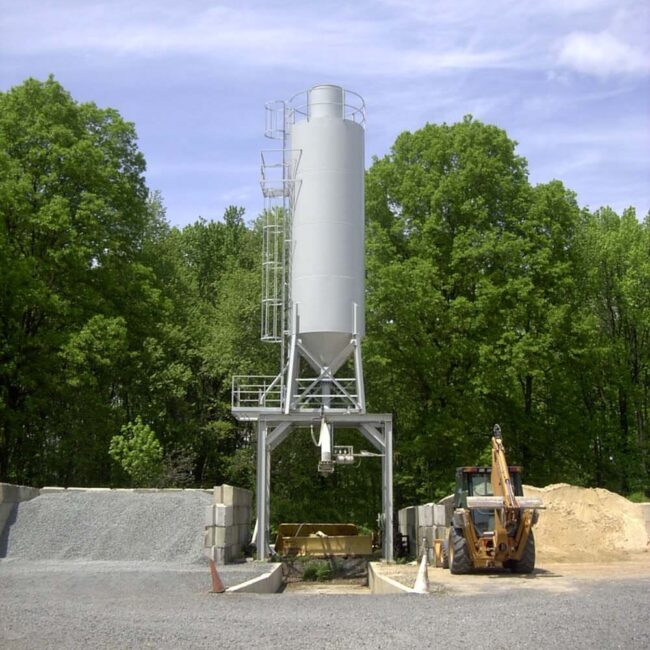

The stationary upright silo is used when minimal restrictions are called for. Silo is not usually moved after installation.

  • Basic cement silo with stand


Basic Silo Standard Equipment

  • Legs w/3'-6" clearance under discharge
  • Outside ladder with cage (optional inside ladder)
  • Full railing
  • 4" blower pipe with adapter (optional 5" blower pipe)
  • 150 sq. ft. dust house with air vibrator and pop-off valve (optional 225 sq. ft.)
  • Vibrator air line
  • Manhole
  • External air pads with manifold
  • Standard jam gates

Available barrel sizes: 185, 270, 350, 450, 550, 700, 900, 1050

Options

  • Available with 225 sq. ft. dust house
  • Pulse Jet Dust House
  • 10" or 12" Air Actuated Butterfly Valve
  • Bin level indicators
  • Other options available
