POLYESTER MIXERS

Zimmerman Industries is the sole maker of polyester concrete mixers, producing a two-part binder system used in road overlays as a cement alternative for fine and coarse aggregates.

CONCRETE SOLUTIONS

 This volumetric concrete mixer is designed for polyester concrete, used for infrastructure repair (bridge and deck overlays). The polyester concrete is flexible and impervious to water. This volumetric concrete mixing truck passed all requirements of the State of California Department of Transportation (CALTRANS).

CONCRETE SOLUTIONS

POLYESTER MIXERS

Zimmerman Industries is the exclusive manufacturer of true polyester concrete mixers, producing a two-part binder system. This system serves as a cement alternative for fine and coarse aggregates in road overlays.

THE ZIM-MIXER
CONTACT US
The First Polyester Concrete Mixer

Zimmerman Industries was contracted to build a unit to produce a new product that was being tested as a road overlay – polyester concrete. The unit had to meet the mounting and delivery requirements of the chemical pump manufacturer, thoroughly mix the material, and pass the stringent requirements of the State of California Department of Transportation (CALTRANS). The customization included changes to the unit configuration; mechanical, hydraulic, pneumatic and electrical systems; and designing/programming a digital recording and monitoring system.


The custom concrete mixer was designed, built and delivered to the customer site in California. The unit was calibrated in conjunction with the pump manufacturer, and configured to deliver the product desired. Once this was accomplished, the unit was taken to the CALTRANS project and was subjected to their vigorous testing measures. The Polyester Concrete Mixer passed all the requirements of CALTRANS. After passing the CALTRANS test, the mixer was put into service immediately.

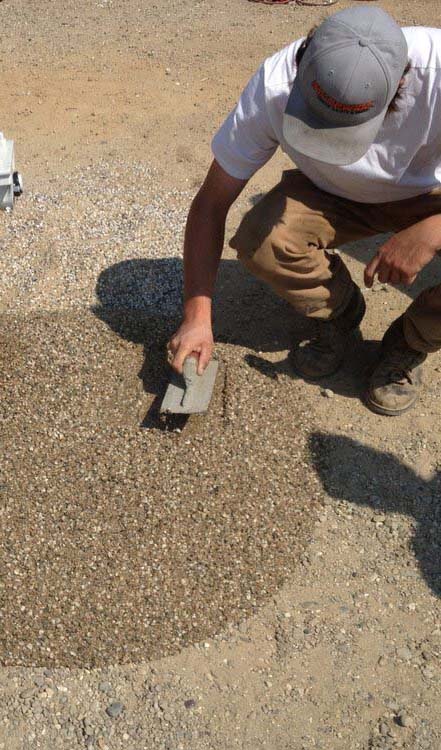

A concrete worker is spreading fresh concrete poured from the volumetric concrete mixing truck. This view shows the concrete worker and the chute - the truck is not in view.
  • Patented dual chain material feed system found only in Zim-Mixer equipment, which is the most accurate in the industry, longest lasting, self-cleaning, and has the ability to run any material individually.
  • Aggregate bin with center divider.
  • Two Stainless Steel Resin tanks.
  • Hydraulic driven positive displacement piston pumps for the resin and both admixtures for consistent mixing.
  • 4-Section hydraulic pump provides an independent pump for each hydraulic circuit which gives the most consistent mixing and coolest running hydraulic system in the industry.
  • Material counter
  • Computer digital display to show mixing ratios which prints out a ticket every 5 minutes of running time.
  • 9′ mix auger with replaceable Ni-Hard wear pads and “Easy cleaning” drop open boot.
  • Power auger lift and swing.
  • Manual telescopic chutes, which are mounted to the auger and require no attachment by the operator.
  • Unit painting which includes two coats of epoxy primer and two coats of industrial grade polyurethane paint.
  • Unit mounting on truck chassis, trailer, skid, etc.
  • Operator training at customer location.
  • Capacity: 10 Yards
  • Production Rate: 30 Yards Per Hour
  • Resin: 700 Gallons
  • Ag Bin Capacity: 390 Cubic Feet
  • Empty Unit Weight (Pounds): 10 Yard: 10,200
  • Hydraulic Pump: 4 Section
  • Patented Chain Delivery System: Yes
  • Auger Length: 9 Feet
  • Auger Diameter: 12 inch
  • Capacity – 10 Yard
  • Front Axle (Lbs.) 20,000
  • Rear Axle (Lbs.) 46,000
  • Cab to Axle: 155 Inches
  • Frame Width: 33.75 Inches
  • Extra axles may be required to meet state specific laws.
