GUNITE VOLUMETRIC MIXERS

The gunite mixer, 700G series, is designed and manufactured for the gunite/shotcrete producers or anyone wanting to mix a pre-blended aggregate with cement. It is equipped with a patented single material feed chain, which is the most accurate in the industry.

CONCRETE SOLUTIONS

 This volumetric concrete mixer is designed for the gunite or shotcrete producers. This is a view of the bins, tanks, control pannel and chute. This mixer is equipped with the patented dual chain material feed system - the most accurage in the industry.

CONCRETE SOLUTIONS

GUNITE VOLUMETRIC MIXERS

Designed for gunite/shotcrete applications.  The 700G series gunite mixer efficiently blends pre-blended aggregate with cement. Its patented single material feed chain provides unmatched accuracy in the industry.

THE ZIM-MIXER
CONTACT US

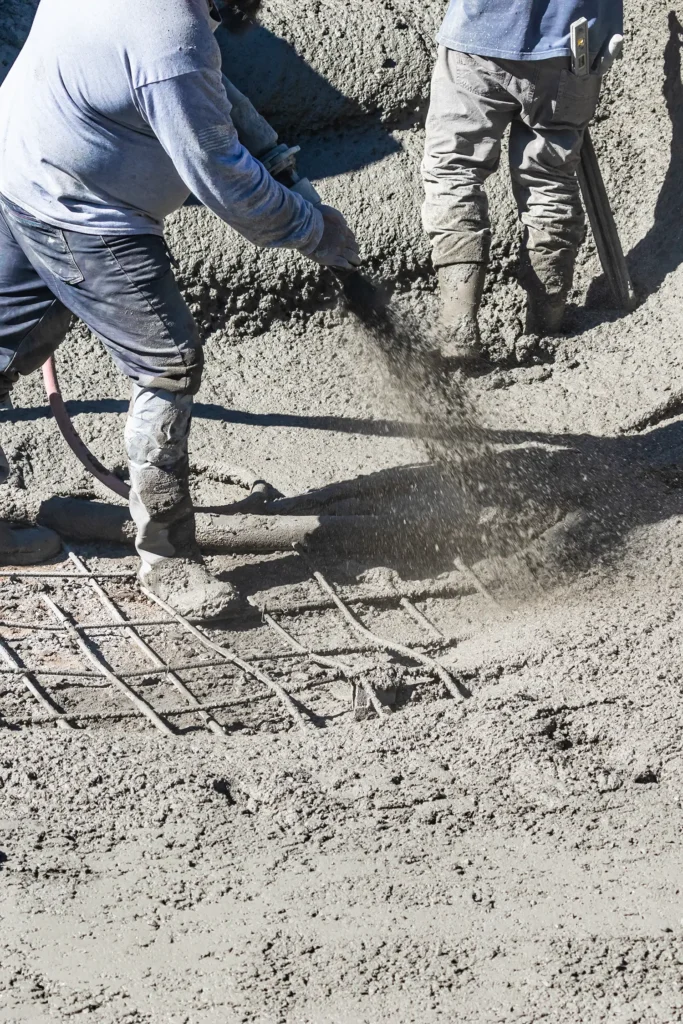

A concrete company on the job site - concrete workers are constructing a swimming pool with gunite mix. Volumetric concrete mixer allows for on-site loading and fresh concrete mixing on the job site.
  • Patented single chain material feed system (unique only to the Zim-Mixer® brand!) which is the most accurate in the industry, is self cleaning, the longest lasting, and has the ability to run any material individually.
  • Aggregate bin with no center divider.
  • Cement bin with power agitator which includes a patented chain feed system.
  • 2-Section hydraulic pump provides an independent pump for each hydraulic circuit which gives the most consistent mixing and coolest running hydraulic system in the industry.
  • Automatic cam operated vibrators.
  • Material counter.
  • 9′ reinforced mix auger with replaceable Ni-Hard wear pads.
  • Power auger lift and swing.
  • Hydraulic oil cooler.
  • Material feed flow control.
  • Unit painting which includes two coats of epoxy primer and two coats of industrial grade polyurethane paint.
  • Unit mounting on truck chassis, trailer, skid, etc.
  • Calibration yield box.
  • Operator training at customer location.
  • Capacity: 10, 12, 14, 17 Yards
  • Production Rate: 15 Yards Per Hour
  • Cement: 96, 113, 130 Cubic Feet
  • Water Tank: Optional
  • Ag Bin Capacity: 281, 334, 389, 468 Cubic Feet
  • Empty Unit Weight (Pounds): Contact ZI
  • Hydraulic Pump: 2 Sections
  • Patented Chain Delivery System: Yes
  • Auger Length: 9 Feet
  • Auger Diameter: 9 inches
  • Meets Standards:
    • ASTM C685: Yes
    • AASHTO M241: Yes
    • Certified VMMB Plate: N/A
    • CE Certified: Yes
  • Capacity: 10, 12, 14, & 17 Yard
  • Front Axle (Lbs.):
    • 20,000
  • Rear Axle (Lbs.):
    • 46,000
  • Cab to Axle: 155 Inches
  • Frame Width: 33.75 Inches
  • Extra axles may be required to meet state specific laws.
